Indoor Soccer Field Construction

Indoor Football Field Installation

Syntethic turf consist artificial fiber yarn which is similar to natural turf. Syntethic turf is usually chosen for commercial purpose fort he football field and sport areas. Today, soft syntethic turf become more beautiful option for avoid injuries.

Because of the advantage of the artificial turf, the firms and sports owners choose it.

On the other hand the natural grass needs more maintenance from the syntethic grass. It has UV resistance and can be used for years because it has a special structure in all weather conditions. Our products are environmentally friendly. In addition, the player can play safely without being harmed. Integral artificial turf is guaranteed under optimum conditions for 7 years.

Usually, there are different 3 types of football field: outdoor football piitch, indoor footbaal pitch and small football pitch.

Outdoor Football Field installation

The sizes of outdoor football fields are minumum 45x 90m, maximum 90 x  120m depending on the FIFA standards.

First Step : Sub Base Of Pitch

At first, the ground should be excavated and balanced. The canals should be excavated for place mould of concrete bound. The beam includes 8 to 12 iron bars. In order to drain the water from the ground, we place the tubes at a depth of 30 cm and the distance and place with sufficient slope are very important at this stage. After that, we placed the 4 inch anchor pipe vertically into the border. The molds are filled with 20 concrete molds. After that, the entire surface will be filled with gravel.

Second Step : Wire Fence and Nets Constructions

Iron poles are soldered anchor pipes placed in the limit. The reinforcing bars shall be brazed to the horizontal pipes in all corners. The poles will also be reinforced with other poles. To reinforce the sides, the transverse tubes are soldered to the side bars and to the rods behind the posts. After that, we will place stairwells on the sides of the area and start to place the entrance door and a pair of goal posts. We paint every iron equipment. Then we close the field and castle poles with a net of polyamide. At the end we have installed the projector and other electrical materials.

Last Step : Football Pitch Installatıon

First of all, we should cover up the gravelled area with the felt syntethic turf will be laid on the surface already covered with felt. Syntethic turf fields will be glued by polyester tape by using some special glue. The glues used are double componentt polyyurethane glues. We then poured the sand into the grass and finally filled with black granules or colored EPDM.

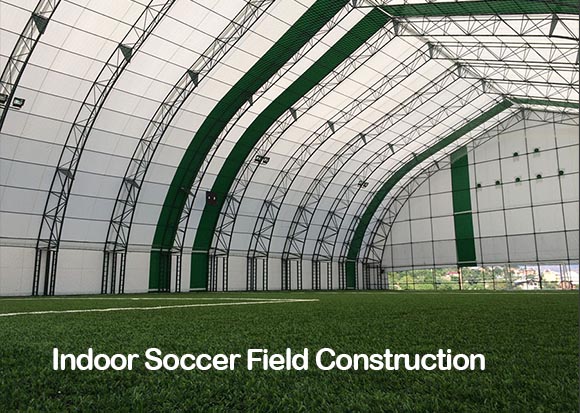

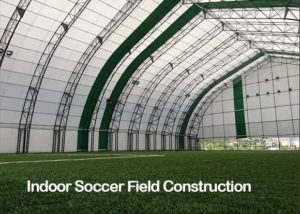

Indoor Football Field Installation

Stell Skeleton indoor Football Field Installation

The steel structure of the indoor astroturf is calculated depending on the wind, snow and precipitation conditions. When the plans of static measurements are terminated and outdated, we begin the production of steel components of the area.  Completed in 4-5 weeks and prepared for installation. Steel construction is done in 2 weeks.

Later than we start construction of covering materials. Covering elements are; Athletic Systems cover, tarpaulin membrane cover, sandwich panel cover and steel sheet cover During the construction of the coverings, we work for construction of syntethic turf, flooglights and electrical materials, PVC covered galvanised fence and net constructions can be completed at the same time. All these works can be done about 6-8 weeks.

Football field sizes : the sizes of football pitches are changes depending on the butget and appropiation of the area. The sizes should be chosen are in between 20mx40m and 30mx50m. But the most preferable and advised size is accepted to be as 30mx50m.

First step:  sub base of the pitch

At first, the ground should be excavated and balanced. The canals should be excavated for place mould of concrete bound. The beam includes 8 to 12 iron bars. In order to drain the water from the ground, we place the tubes at a depth of 30 cm and the distance and place with sufficient slope are very important at this stage. After that, we placed the 4 inch anchor pipe vertically into the border. The molds are filled with 20 concrete molds. After that, the entire surface will be filled with gravel.

Second step : wire fencing and nets constructions

Iron poles are soldered anchor pipes placed in the limit. The reinforcing bars shall be brazed to the horizontal pipes in all corners. The poles will also be reinforced with other poles. To reinforce the sides, the transverse tubes are soldered to the side bars and to the rods behind the posts. After that, we will place stairwells on the sides of the area and start to place the entrance door and a pair of goal posts. We paint every iron equipment. Then we close the field and castle poles with a net of polyamide. At the end we have installed the projector and other electrical materials.

Last step : football pitch ınstallation

First of all, we should cover up the gravelled area with the felt syntethic turf will be laid on the surface already covered with felt. Syntethic turf fields will be glued by polyester tape by using some special glue. The glues used are double componentt polyyurethane glues. We then poured the sand into the grass and finally filled with black granules or colored EPDM.

Hatko Sport 2019

  • Quality Certificate
  • Duo color
  • High Quality Polymers
  • UV resistance
  • Environmentally Friendly
  • Professional Use
  • Amateur  Community Use
  • Skin Friendly
  • High Resilience
  • High Durability
OMEGA TURF XL R
  • Pile height : 40, 50, 55, 60mm
  • Infill : SBR/ Coated SBR / Cork / EPDM
  • Shock pad : N/A
  • Norms : NF / EN / DIN
  • Certifications : FFA Q / FFAQP / WR / GAA
  • Usage : Football, Rugby, Baseball, Mini Soccer
INVICTO R
  • Pile height: 40, 50, 55, 60mm
  • Infill: SBR/ Coated SBR / Cork / EPDM
  • Shock pad: Insitu / Elastolay / Foam / Aircell 10
  • Norms: NF / EN / DIN
  • Certifications: FFA Q / FFAQP / WR / GAA
  • Usage: Football, American Football, Rugby, Baseball, Mini Soccer
